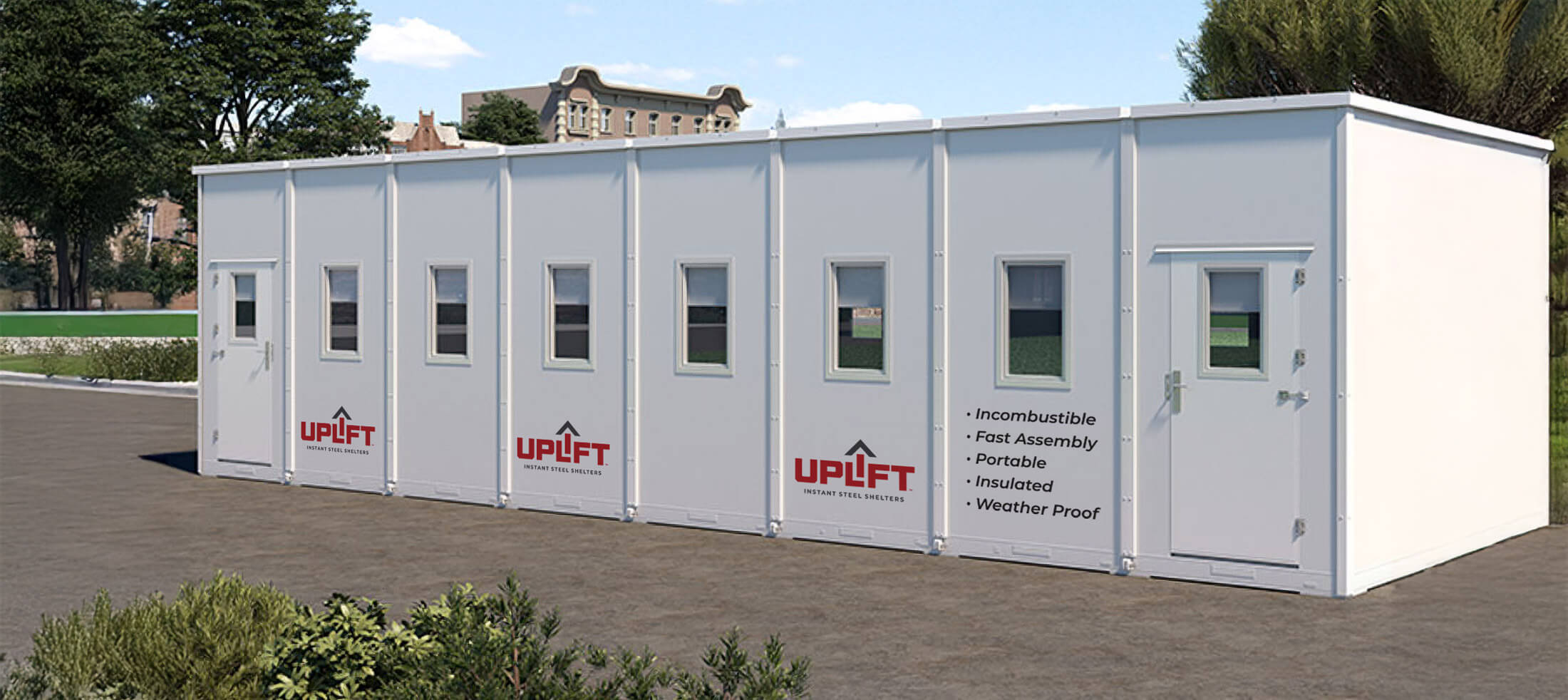

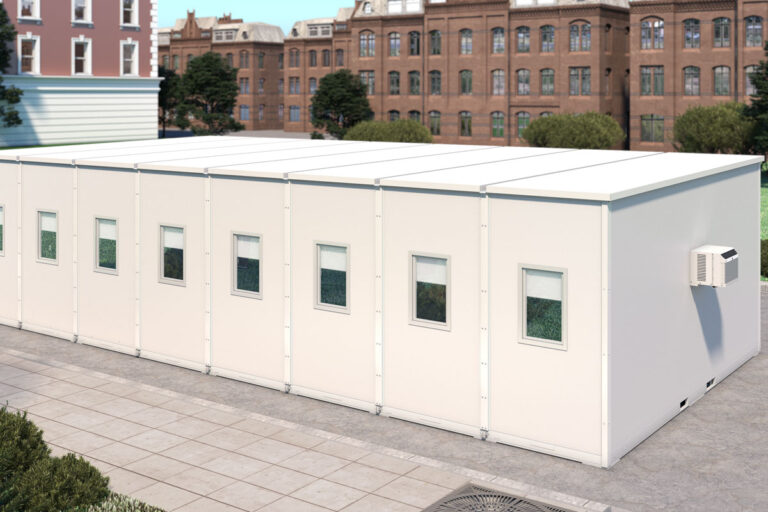

UPLIFT™ Community Center

(800 Ft²) – 40′ L x 20′ W

The UPLIFT™ Community Center™ is a robust energy-efficient shelter providing ample space for large group gatherings and community activities. It features a Galvalume exterior and fiberglass insulation with wall panels (R-15), floor (R-19), and roof (R-30) ratings for optimal thermal performance. It includes 14 operable windows with egress-compliant screens and two lockable doors with windows for secure entry. The Community Center accommodates group events in both urban and remote settings.

Specifications for UPLIFT™ Community Center

  • Model Number: UPLIFT™ Community Center 800
  • Square Footage: 800 ft²
  • Dimensions (L x W): 40′ x 20′
  • Construction Type: Complete Foldable Hinge Design
  • Set Up Time: 3 Hours
  • Sub Floor: Included

Insulation

  • Floor R-Value: R-19
  • Wall R-Value: R-15
  • Roof R-Value: R-30
  • Insulation Type: Fiberglass

Materials

  • Exterior Material: Galvalume
  • Interior Material: Powder Coated Steel
  • Frame Material: Steel

Structural Ratings

  • Roof Load: Up to 50 psf snow loads
  • Wind Load: Up to 170 mph

Additional Features

  • Forklift Sleeves: Yes
  • Base & Floor: 6″ integrated steel base with built-in floor
  • Windows (Single Hung): 6 @ 24″ x 48″
  • Windows (Single Hung): 8 @ 24″ x 48″
  • Windows can meet egress code



Casement Window Upgrade Available

Other Specialty Units

Electric Package

Includes a complete electrical package with:

  • 120-volt power panel for interior use, providing 20-amp electric service.
  • 120 V outlets.
  • 6,000 BTU wall air conditioner.
  • 1,500-watt floor heater.
  • LED lighting.
  • Smoke/CO detector.
  • Fire extinguisher.
  • LED light with motion sensor and on/off switch.

Add-On Options

  • Signage
    Custom wrap or solid-color paint finishes to match your branding

  • Insulation Upgrade
    Upgradable insulation packages available — call for details

  • Assembly Package
    Turnkey service to unload, unpack, and set up any quantity of shelters on-site

Don’t see what you need? Call our sales and engineering team at 612-237-2313 to discuss custom options and get a quote based on location, quantity, and scope of work.
