UPLIFT™ Bathroom 112-2

(120 Ft²) – 14′ L x 8′ W

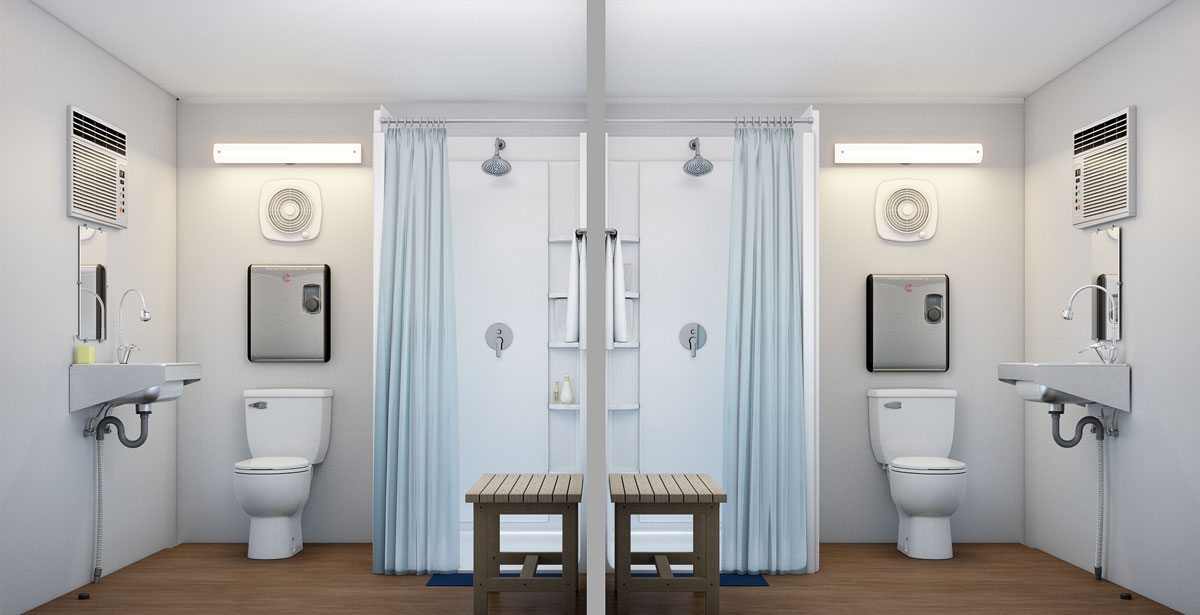

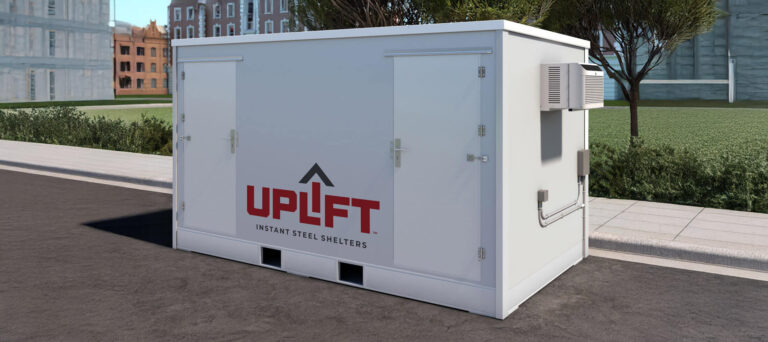

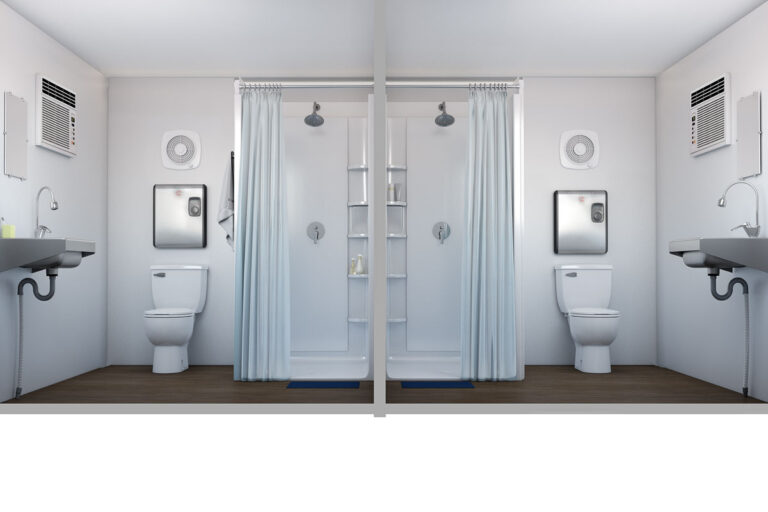

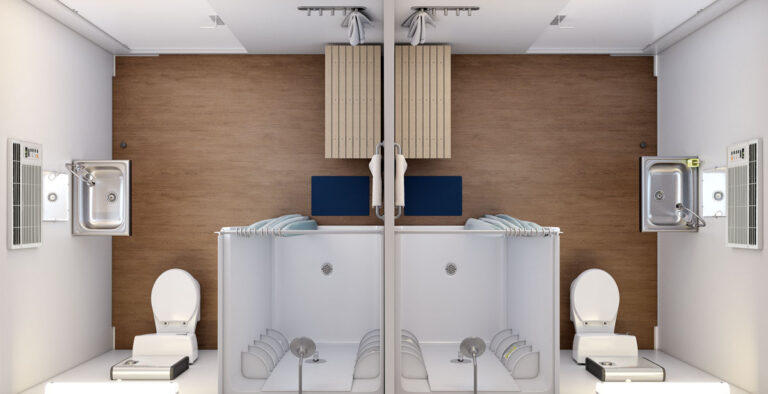

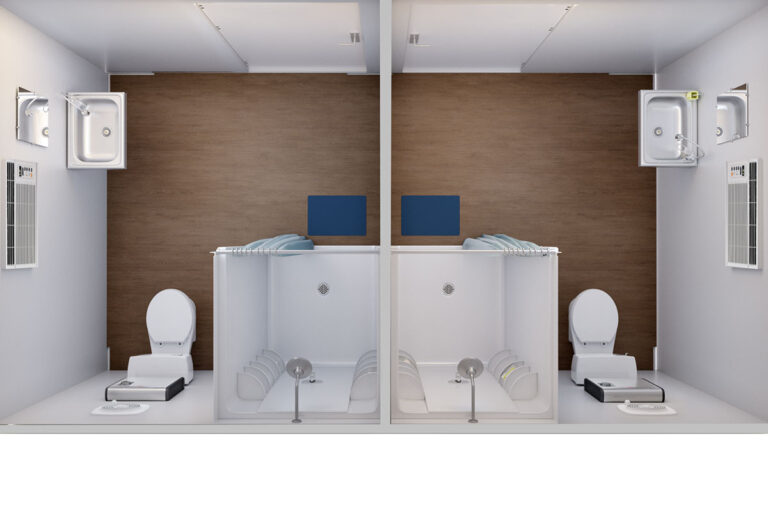

The UPLIFT™ Bathroom 112-2 is a durable insulated unit featuring a center partition. It includes two lockable doors, creating two fully separate bathrooms. With 112 ft² of space (14′ L × 8′ W), the UPLIFT™ Bathroom 112-2 provides private restroom accommodations in a compact footprint.

Specifications for UPLIFT™ Bathroom 112-2

  • Model Number: UPLIFT™ 112-2 Bathroom
  • Square Footage: 112 ft²

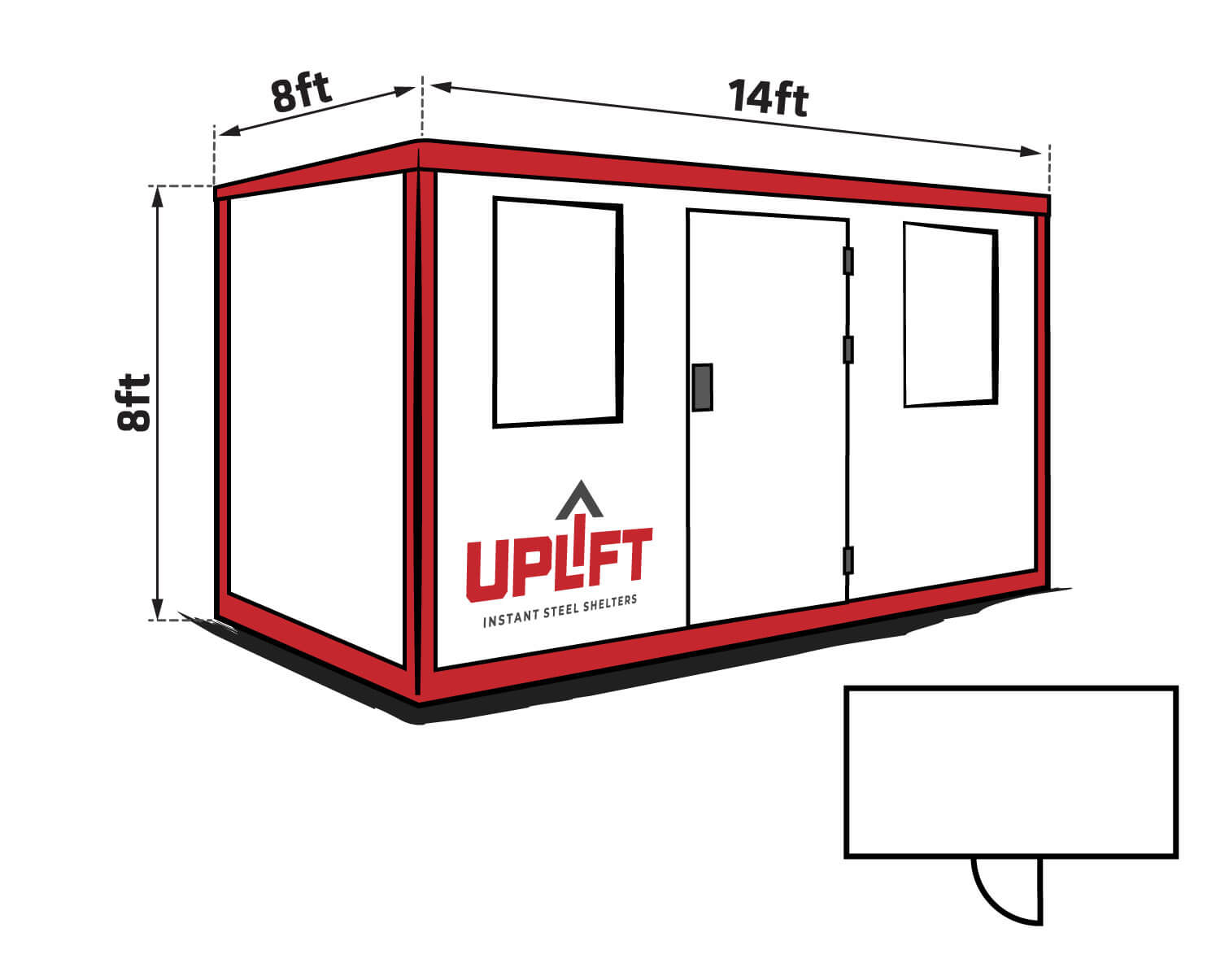

  • Dimensions (L x W): 14′ x 8′
  • Construction Type: Complete Foldable Hinge Design
  • Set Up Time: 20 Minutes
  • Sub Floor: Included

Insulation

  • Floor R-Value: R-19
  • Wall R-Value: R-15
  • Roof R-Value: R-30
  • Insulation Type: Fiberglass

Materials

  • Exterior Material: Galvalume
  • Interior Material: Powder Coated Steel
  • Frame Material: Steel

Structural Ratings

  • Roof Load: Up to 50 psf snow loads
  • Wind Load: Up to 170 mph

Additional Features

  • Forklift Sleeves: Yes
  • Base & Floor: 6″ integrated steel base with built-in floor

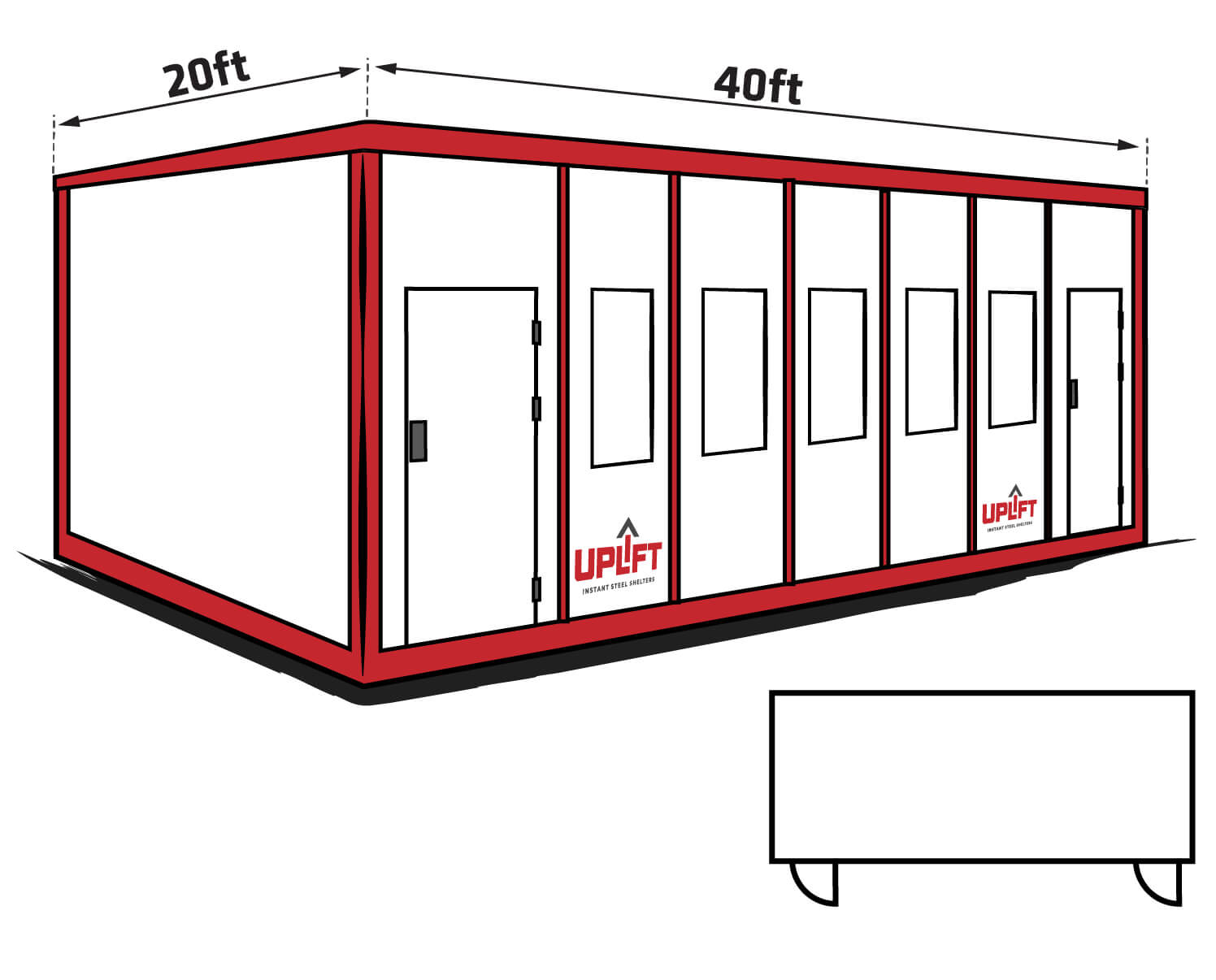

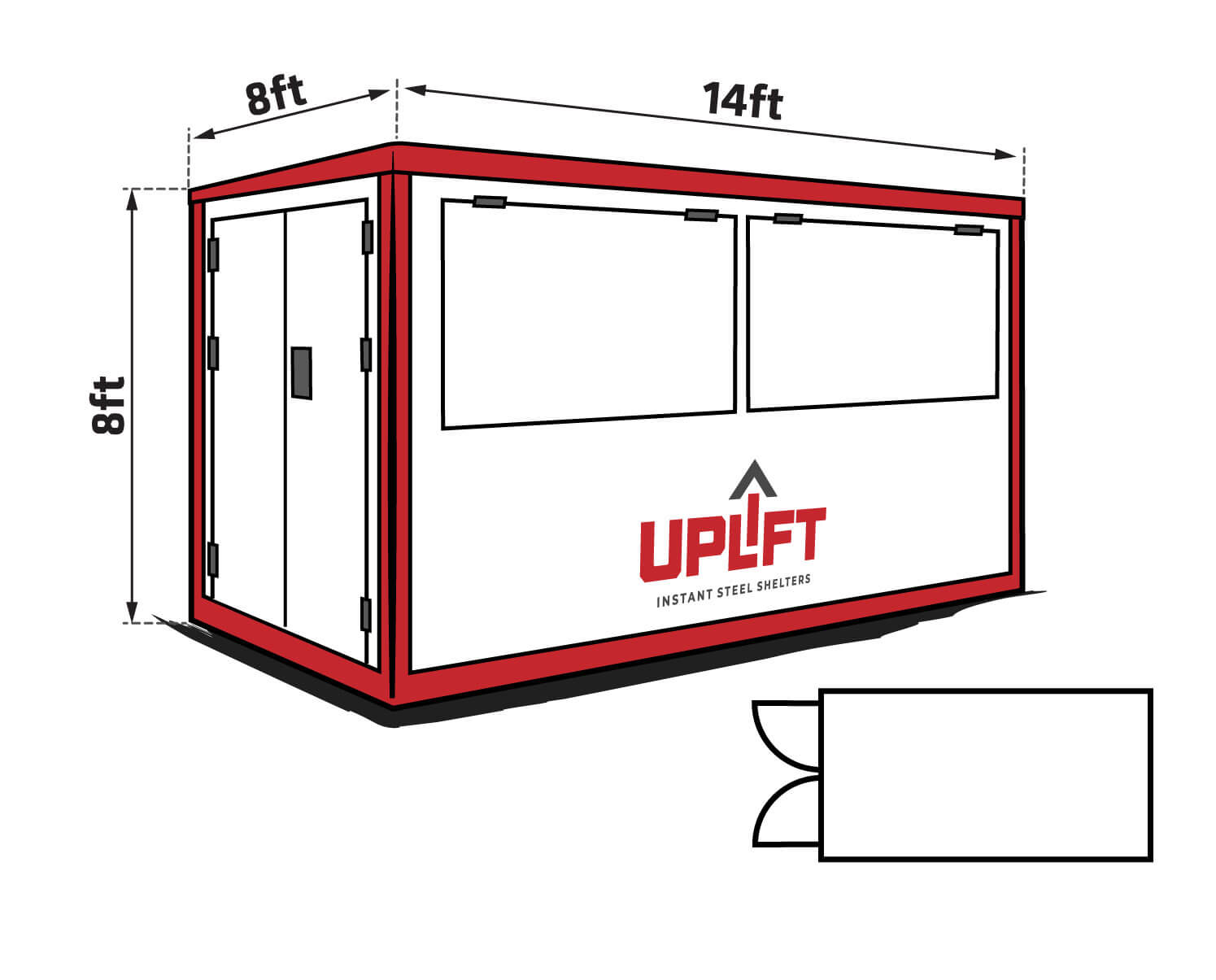

Other Specialty Units

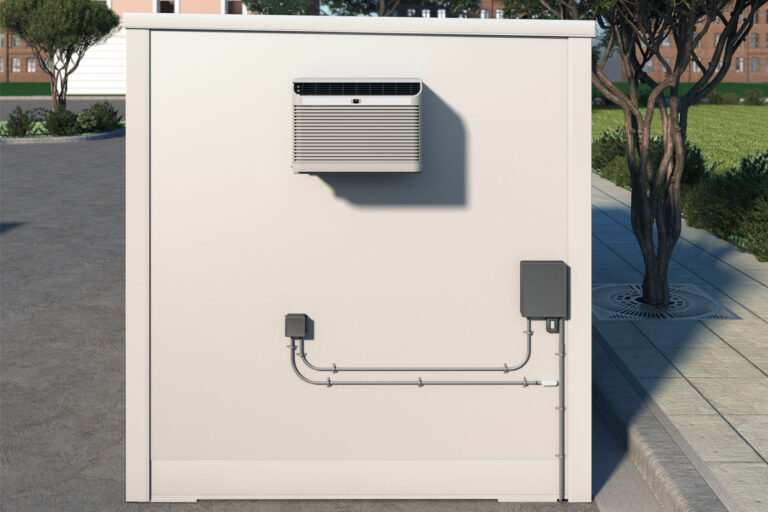

Electric Package (Standard)

Includes two complete electrical packages with:

  • 120-volt power panels for interior use, each providing 20-amp electric service.
  • Four 120V outlets per package.
  • One 6,000 BTU wall air conditioner per package.
  • One 1,500-watt floor heater per package.
  • LED lighting.
  • Smoke/CO detector.
  • Fire extinguisher.
  • LED light with motion sensor and on/off switch.

Add-On Options

  • Signage
    Custom wrap or solid-color paint finishes to match your branding

  • Insulation Upgrade
    Upgradable insulation packages available — call for details

  • Assembly Package
    Turnkey service to unload, unpack, and set up any quantity of shelters on-site

Don’t see what you need? Call our sales and engineering team at 612-237-2313 to discuss custom options and get a quote based on location, quantity, and scope of work.
