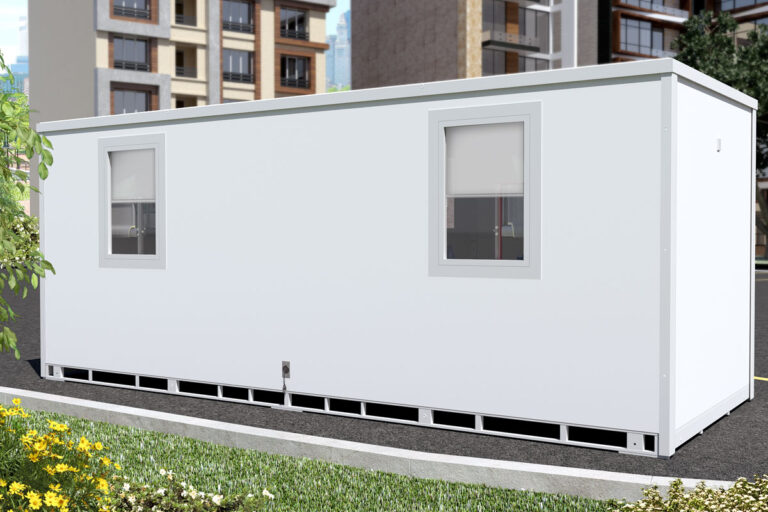

UPLIFT™ 160

(160 Ft²) – 20′ L x 8′ W

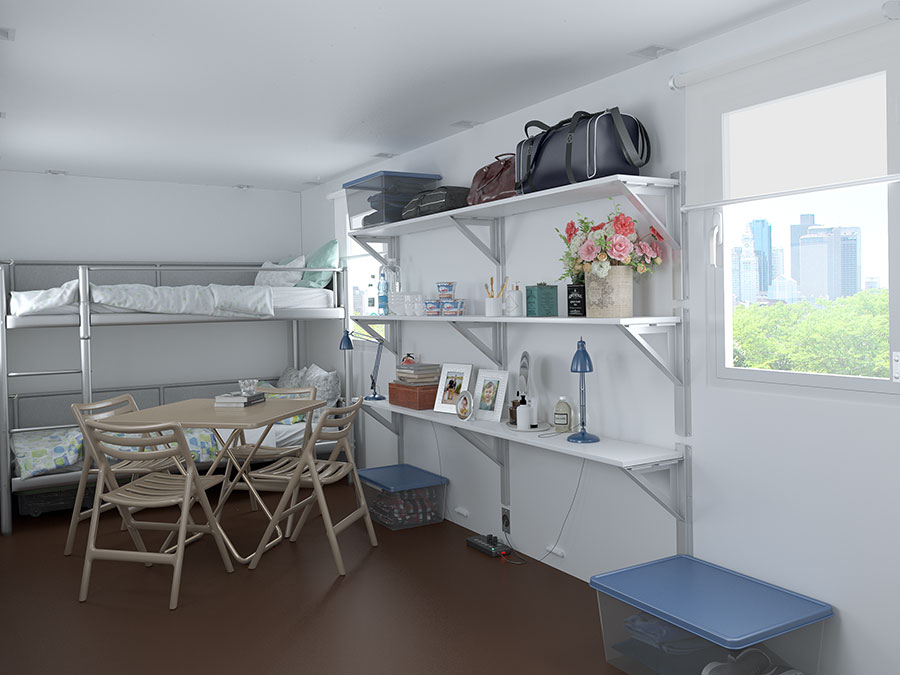

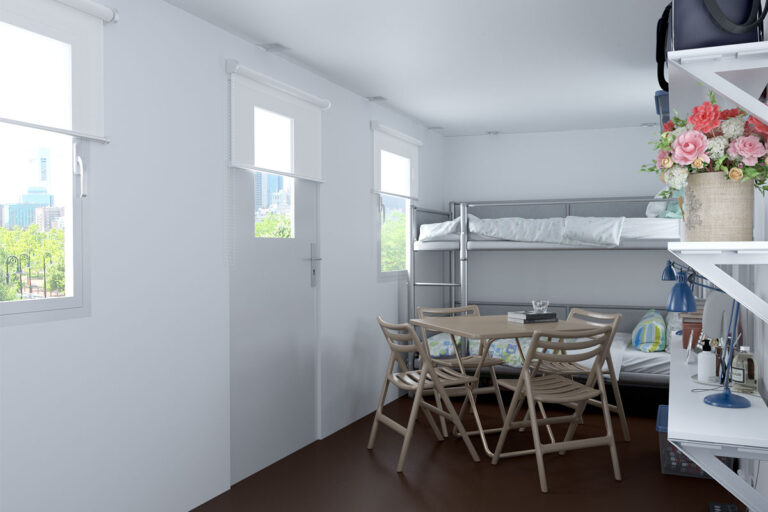

The UPLIFT™ 160 is a portable shelter providing 160 ft² of living space. It includes 1 lockable door, 4 operable windows with egress-compliant screens, and built-in shelving.

Specifications for UPLIFT™ 160

  • Model Number: UPLIFT™ 160
  • Square Footage: 160 ft²
  • Dimensions (L x W): 20′ x 8′
  • Construction Type: Complete Foldable Hinge Design
  • Set Up Time: 30 Minutes
  • Sub Floor: Included

Insulation

  • Floor R-Value: R-19
  • Wall R-Value: R-15
  • Roof R-Value: R-30
  • Insulation Type: Fiberglass

Materials

  • Exterior Material: Galvalume
  • Interior Material: Powder Coated Steel
  • Frame Material: Steel

Structural Ratings

  • Roof Load: Up to 50 psf snow loads
  • Wind Load: Up to 170 mph

Additional Features

  • Forklift Sleeves: Yes
  • Windows (Single Hung): 2 @ 24″ x 48″
  • Windows (Single Hung): 2 @ 24″ x 48″
  • Windows can meet egress code



Casement Window Upgrade Available

Other Uplift Shelters

Electric Package (Standard)

Includes a complete electrical package with:

  • 120-volt power panel for interior use, providing 20-amp electric service.
  • Four 120V outlets.
  • One 6,000 BTU wall air conditioner.
  • One 1,500-watt floor heater.
  • LED lighting.
  • Smoke/CO detector.
  • Fire extinguisher.
  • LED light with motion sensor and on/off switch.

Add-On Options

  • Signage
    Custom wrap or solid-color paint finishes to match your branding

  • Insulation Upgrade
    Upgradable insulation packages available — call for details

  • Assembly Package
    Turnkey service to unload, unpack, and set up any quantity of shelters on-site

Don’t see what you need? Call our sales and engineering team at 612-237-2313 to discuss custom options and get a quote based on location, quantity, and scope of work.
